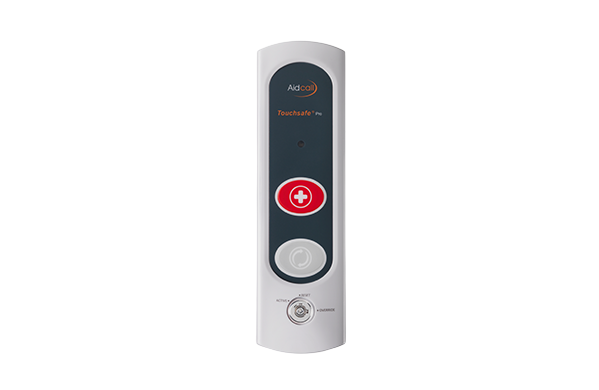

Touchsafe Pro Door Monitors are battery powered and communicate via two‐way radio transmissions to
ensure all alarms are transmitted and received correctly. When active, the Door Monitor will raise an alarm
on the Nursecall system when the monitored door is opened – the alarm level can be set as Call, Assistance
or Emergency. The alarm can only be cancelled by visiting the door and resetting the unit with a key.
The Door Monitor can be overridden with a key during periods when the door needs to be opened; a
reminder can be set to report the door is not being monitored after a preset period. The Door Monitor also
includes an Emergency call button to manually raise an Emergency alarm on the Nursecall system at any
time – this must also be reset with a key.
The Door Monitor has two internal reed switches so the magnetic door contact can be fitted on doors
which open from the left or right hand side. It is also supplied with an external reed switch for installations
where it is not possible to mount the Door Monitor on the door frame directly alongside the door magnet.
If the Door Monitor is fitted on an Emergency Exit it should be set to operate in “Monitored Mode”
whereby all door open events are recorded in the Nursecall system log even when the key switch is in the
override position.
If the Door Monitor is fitted on a thoroughfare then “Un‐monitored Mode” should be set to preserve
battery life and reduce log entries. In this mode door open events are only transmitted when the key switch
is in the active position.
- Monitor Fire Exits
- Staff Override Function
- View Door Status on Display
- Arm Door Reminder
- Staff Emergency Help Button
- Staff Only Reset
